Volkswagen Golf Service & Repair Manual: Removing and installing rear centre console trim

Special tools and workshop equipment required

Removing
–  Move front seats as far forwards as possible.

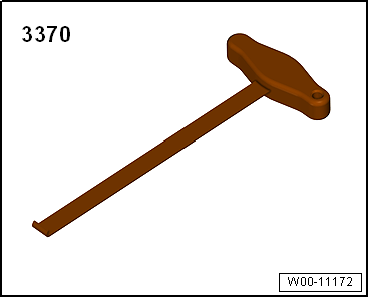

Front-end hook -3370-
Front-end hook -3370-

–  Pull rear trim -1- at bottom end to rear off centre console -2- using front-end hook -3370-.

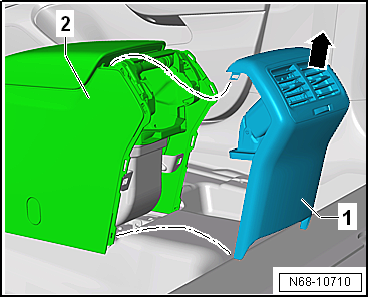

–  Pull rear trim -1- upwards off centre console -2--arrow-.
Installing
  Note
  • Before installing, check all fasteners for damage and renew if necessary.
  • Installation is carried out in reverse order.


Removing and installing rear centre console trim

Removing and installing front ashtray
Removing –  Remove front ashtray -1- upwards from centre console -2-. Installing Installat ...

Removing and installing centre console trim in footwell
  Note Removal and installation is described for the centre console trim in footwell on driver side. Follow same instructions for the front passenger sid ...
