Volkswagen Golf Service & Repair Manual: Removing and installing front ashtray

Removing

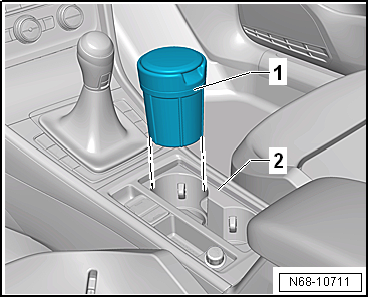

–  Remove front ashtray -1- upwards from centre console -2-.
Installing
Installation is carried out in reverse order.
