Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine assy, cylinder blook, crankcase / Assembly mountings / Removing and installing pendulum support

Remove noise insulation → General body repairs, exterior; Rep. gr.66.

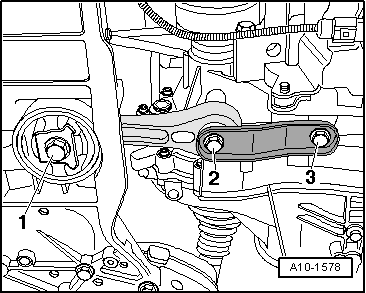

–	Unscrew bolts -1, 2 and 3-, and remove pendulum support.

Installing

Installation is carried out in the reverse order; note the following:

Note

Removing and installing pendulum support

There are threaded inserts, e.g. “Heli coil”, in the bolting holes for the pendulum support.

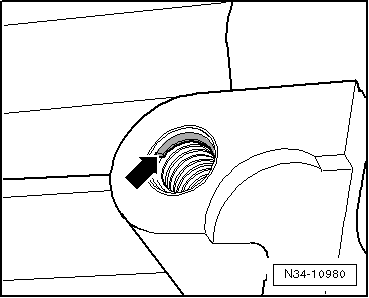

Identifying feature: Shoulder on first thread pitch -arrow-.

Specified torques

→ Fig. „“Install pendulum support”“

Removing and installing pendulum support

Removing and installing gearbox mounting

Removing – Release hose clips -1- and -2-, and remove air pipe. – ...

Checking adjustment of assembly mountings (engine and gearbox mountings)

Procedure The following specifications must be obtained: There must be a distance of - ...
