Volkswagen Golf Service & Repair Manual: Removing and installing oil spray jets

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Enginecrankshaft group, pistons / Pistons and conrods / Removing and installing oil spray jets

Special tools and workshop equipment required

Socket -T10545-

Removing

–	Remove noise insulation → General body repairs, exterior; Rep. gr.66.

–	Remove sump upper part → Chapter.

Note

The crank web of the respective cylinder must be positioned so that the socket -T10545- can be inserted in the pressure relief valve as close to vertical as possible.

Furthermore, the corners of the socket -T10545- and of the pressure relief valve must engage well.

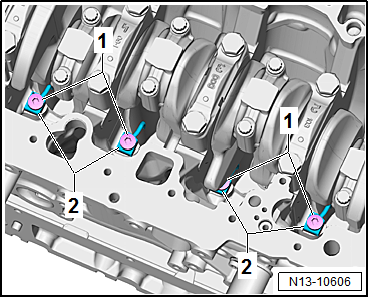

–	Turn crankshaft via vibration damper securing bolt in direction of engine rotation until the respective bolt is accessible.

–	Unscrew pressure relief valve -1- using socket -T10545-.

–	Remove oil spray jets -2-.

Installing

Risk of damage to oil spray jets caused by deformation.Do not bend oil spray jets.

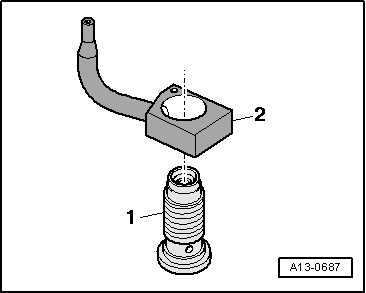

Removing and installing oil spray jets

1 -	Pressure relief valve - 27 Nm

2 -	Oil spray jet

Installation position: align leading edge of oil spray jet arrow with machined surface of cylinder block.

–	Remove upper part of sump → Chapter.

–	Install noise insulation → General body repairs, exterior; Rep. gr.66.
