Volkswagen Golf Service & Repair Manual: Removing and installing oil pressure switch for reduced oil pressure -F378-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine lubrication / Oil filter, oil pressure switch / Removing and installing oil pressure switch for reduced oil pressure -F378-

Special tools and workshop equipment required

Jointed wrench 24 mm -T40175-

Removing

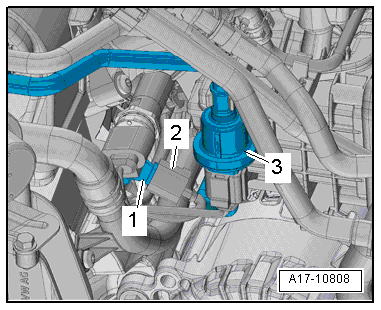

–	Pull activated charcoal filter solenoid valve 1 -N80--3- off intake manifold and push it downwards slightly.

Removing and installing oil pressure switch for reduced oil pressure -F378-

–	Disconnect electrical connector -2-.

Note

Place a cloth underneath to catch escaping engine oil.

–	Unscrew oil pressure switch for reduced oil pressure -F378--1-.

Installing

Installation is carried out in the reverse order; note the following:

Note

The seal cannot be replaced individually.

If removed, oil pressure switch must be renewed.

Insert new oil pressure switch for reduced oil pressure -F378- immediately in hole to avoid loss of oil.

–	Check oil level → Booklet.

Specified torques

→ Chapter „Assembly overview - oil filter/oil pressure switch“
