Note

The rear left vehicle level sender -G76- is only available as a replacement part complete with coupling rod and upper and lower retaining plates.

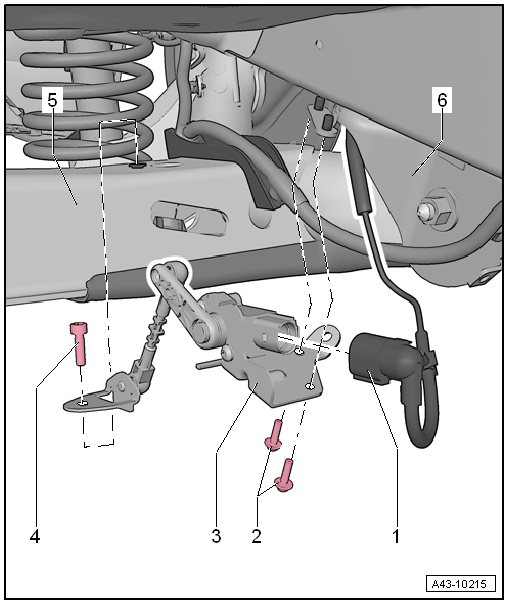

Assembly overview - rear vehicle level sender, torsion beam axle

1 -	Electrical connector

2 -

Bolt

5 Nm

3 -	Rear left vehicle level sender -G76-

Removing and installing → Chapter

–	Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.

Carry out basic setting of headlights → Electrical system; Rep. gr.94

4 -

Bolt

8 Nm

5 -

Axle beam

6 -	Mounting bracket

Assembly overview - front vehicle level senders

Note The front left/right vehicle level sender -G78/G289- is only available as a replacement part complete with coupling rod and upper and lower retaining plates. ...

Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive

Note The vehicle level sender is available as a replacement part only complete with coupling rod and upper and lower retaining plates. 1 - Bolt ...
