Volkswagen Golf Service & Repair Manual: Removing and installing interior aerial 1 for entry and start authorisation -R138-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Entry and start authorisation system / Removing and installing interior aerial 1 for entry and start authorisation -R138-

Special tools and workshop equipment required

Release lever -80 - 200-
Removing
–  Remove centre console insert → General body repairs, interior; Rep. gr.68.


Removing and installing interior aerial 1 for entry and start authorisation -R138-

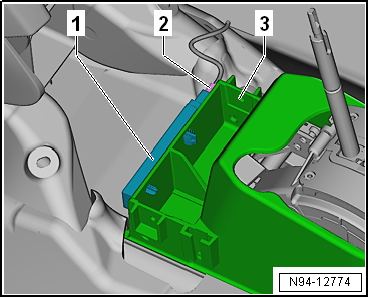

–  Lever aerial -1- off bracket -3- using removal lever -80 - 200-.
–  Disconnect electrical connector -2-.
Installing
Installation is carried out in the reverse sequence.


Removing and installing interior aerial 1 for entry and start authorisation -R138-

Removing and installing driver side aerial for entry and start system -R134-
  Note
The driver side aerial for entry and start system -R134- is integrated in the exterior door handle and cannot be renewed separately if defective.
–  Removing and installing door handle → General body repairs, exterior; Rep. gr.57.
Removing and installing front passenger side aerial for entry and start system -R135-
  Note
The front passenger side aerial for entry and start system -R135- is integrated in the exterior door handle and cannot be renewed separately if defective.
–  Removing and installing door handle → General body repairs, exterior; Rep. gr.57.
Removing and installing interface for entry and start authorisation system -J965-
  Note When renewing the control unit, select Renew function for the respective control unit in Guided fault finding or Guided functions mode ...

Removing and installing luggage compartment aerial for entry and start system -R137-
Special tools and workshop equipment required     Release lever -80 - 200- Removing ...
