Volkswagen Golf Service & Repair Manual: Removing and installing immobiliser reader coil -D2-, vehicles with keyless access locking and starting system

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Steering column switch module / Removing and installing immobiliser reader coil -D2-, vehicles with keyless access locking and starting system

Removing
–  Move steering wheel to rearmost and lowest position. Use the entire range of adjustment of the steering column for this purpose.
–  Remove lower steering column trim → General body repairs, interior; Rep. gr.68.

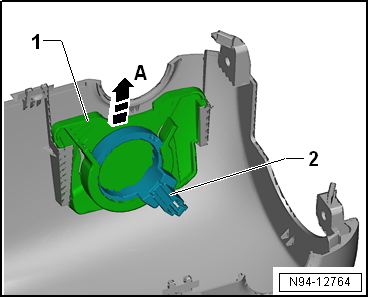

–  Pull reader coil -2- out of mounting -1- in direction of arrow -A-.
Installing
Install in the reverse order of removal, observing the following:
–  Press reader coil into mounting until it engages audibly.
