Volkswagen Golf Service & Repair Manual: Removing and installing illuminated vanity mirror -W20-/-W14-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Lights / Removing and installing illuminated vanity mirror -W20-/-W14-

Note

If an LED vanity mirror light is faulty, the entire light must be renewed.

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

Removing

–	Swing sun visor towards front.

Caution

Danger of damage to component surfaces.

When using leverage tools, mask visible areas of the component with commercially available adhesive tape.

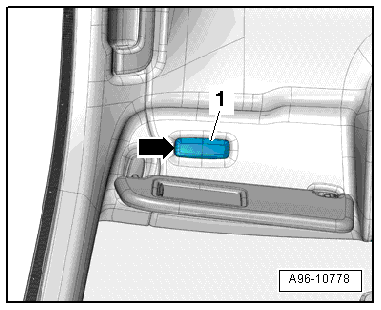

–	Insert a flat screwdriver into notch -arrow- and carefully lever out vanity mirror light -1-.

–	Disconnect electrical connector.

Removing and installing illuminated vanity mirror -W20-/-W14-

–	Press contact plate -1- of light in direction of arrow.

–	Remove festoon bulb -2- from bulb holder.

Installing

Install in the reverse order of removal, observing the following:

–	Insert vanity mirror light into opening and engage it on opposite side.

–	Test functionality.
