Volkswagen Golf Service & Repair Manual: Removing and installing headlight washer system pump -V11-

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Headlight washer system / Removing and installing headlight washer system pump -V11-

Special tools and workshop equipment required

Drip tray

Removing

–	Remove noise insulation → General body repairs, exterior; Rep. gr.66.

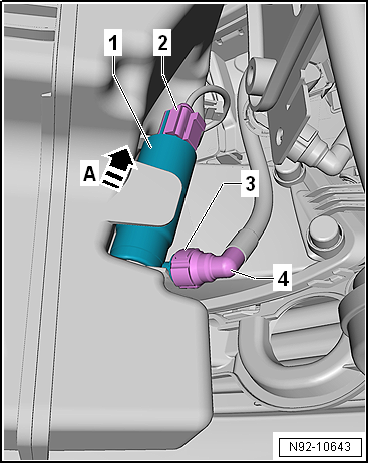

–	Disconnect electrical connector -2-.

–	Place drip tray under washer fluid reservoir.

–	Press release button -3-.

–	Pull water hose -4- off headlight washer system pump -V11--1-.

–	Pull headlight washer system pump -V11--1- upwards -arrow A- out of washer fluid reservoir.

Installing

Install in the reverse order of removal, observing the following:

Note

When connecting the washer fluid line, ensure that the securing clip engages audibly in the connection.

–	Check sealing grommet for damage.

Removing and installing headlight washer system pump -V11-

Assembly overview – headlight washer system, »R«

1 - Cap For filler neck. 2 - Strainer 3 - Washer fluid reservoir, upper part Washer f ...

Removing and installing headlight washer system pump -V11-, »R«

Special tools and workshop equipment required Drip tray Removing – Remove washer fl ...
