Volkswagen Golf Service & Repair Manual: Removing and installing headlight washer system pump -V11-, »R«

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Headlight washer system / Removing and installing headlight washer system pump -V11-, »R«

Special tools and workshop equipment required
Drip tray
Removing
–  Remove washer fluid reservoir → Chapter.

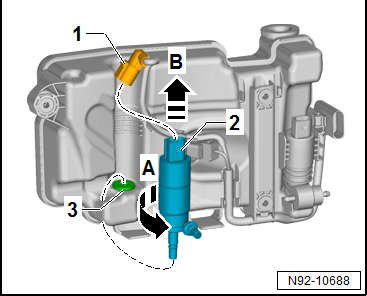

–  Disconnect connector -1- from headlight washer system pump -V11-.
–  Turn headlight washer system pump -V11--2- approx. 45° in direction of arrow -A-.
–  Pull headlight washer system pump -V11--2- out of washer fluid reservoir in direction of arrow -B-.
–  If necessary, remove seal -3- from washer fluid reservoir.
Installing
Install in the reverse order of removal, observing the following:
–  Check sealing grommet -3- for damage.
–  Insert sealing grommet -3- in opening in washer fluid reservoir, and ensure it is seated correctly.
–  Moisten sealing grommet -3- with washer fluid to ease installation of headlight washer system pump -V11-.
  Note
When connecting the washer fluid line, ensure that the securing clip engages audibly in the connection.
