Volkswagen Golf Service & Repair Manual: Removing and installing fresh air blower control unit -J126-, RHD vehicles

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Front heater and air conditioning unit / Removing and installing fresh air blower control unit -J126-, RHD vehicles

Removing
–  Remove baffle plate → Chapter.

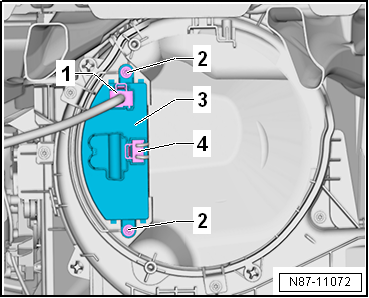

–  Disconnect electrical connectors -1- and -4-.
–  Remove bolts -2-.
Risk of burns when touching the hot cooling surface of the fresh air blower control unit. Risk of burns to the hands.Always wear safety gloves.
–  Remove control unit -3- from fresh air blower -V2-.
Installing
Installation is carried out in the reverse order. When installing, note the following:
–  Check operation of fresh air blower -V2-.
Specified torque
→ Chapter „Assembly overview - add-on parts of heater and air conditioning unit and of air intake box“
