Volkswagen Golf Service & Repair Manual: Removing and installing dust and pollen filter, LHD vehicles

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Front heater and air conditioning unit / Removing and installing dust and pollen filter, LHD vehicles

Special tools and workshop equipment required

Commercially available vacuum cleaner

Cover plate -T10532-

Removal wedge -3409-

Removing

Note

Handle customer property in the glove compartment with care.

Store any objects from the glove compartment in a sealable plastic bag.

–	Move glove compartment lid to service position → General body repairs, interior; Rep. gr.68.

Removing and installing dust and pollen filter, LHD vehicles

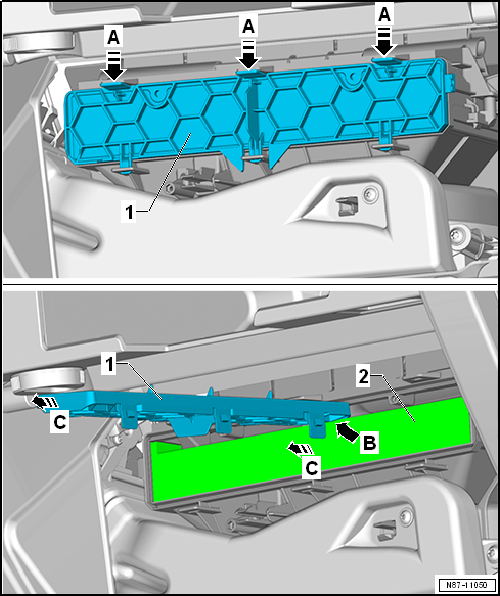

–	Release cover -1- in -direction of arrow- and remove it.

Removing and installing dust and pollen filter, LHD vehicles

–	Push cover plate -T10532--2- under the pollen filter -1-.

Removing and installing dust and pollen filter, LHD vehicles

–	Hook cover -1- into dust and pollen filter -2--arrow -.

Risk of damage to fresh air blower caused by dirt dropping out of the dust and pollen filter when the cover plate is not seated properly.Carefully pull out dust and pollen filter.Keep dust and pollen filter covered by cover plate.

–	Pull out cover -1- in -direction of arrow C-.

–	Ensure that cover plate -T10532- is not pulled out as well.

–	Before removing cover plate -T10532-, remove any dirt and leaves using a commercially available vacuum cleaner.

Installing

–	Install in reverse order. Note the following when doing this:

–	Observe installation position of dust and pollen filter when installing.
