Volkswagen Golf Service & Repair Manual: Removing and installing Hall sender 3 -G300-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Ignition system, glow plug system / Removing and installing ignition coils with output stage / Removing and installing Hall sender 3 -G300-

Removing

–	Release hose clips -1- and -2-, and remove air pipe.

Removing and installing Hall sender 3 -G300-

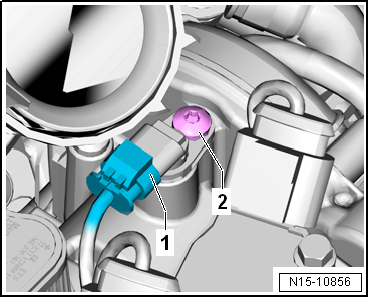

–	Disconnect electrical connector -1-.

–	Unscrew bolt -2- and remove Hall sender 3 -G300-.

Installing

–	Install in reverse order.

Specified torques

→ Chapter „Assembly overview - ignition system“
