Removing

–	Remove baffle plate → Chapter.

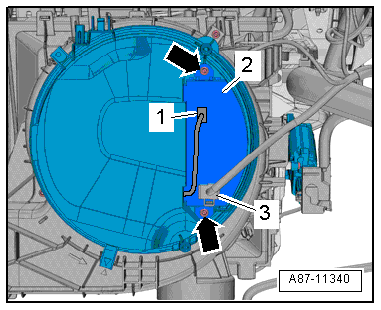

–	Disconnect electrical connectors -1- and -3-.

–	Unscrew bolts -arrows-.

Risk of burns when touching the hot cooling surface of the fresh air blower control unit. Risk of burns to the hands.Always wear safety gloves.

–	Remove control unit -2- on fresh air blower -V2-.

Installing

Installation is carried out in the reverse order. When installing, note the following:

–	Check operation of fresh air blower -V2-.

Specified torque

→ Chapter „Assembly overview - add-on parts of heater and air conditioning unit and of air intake box“
