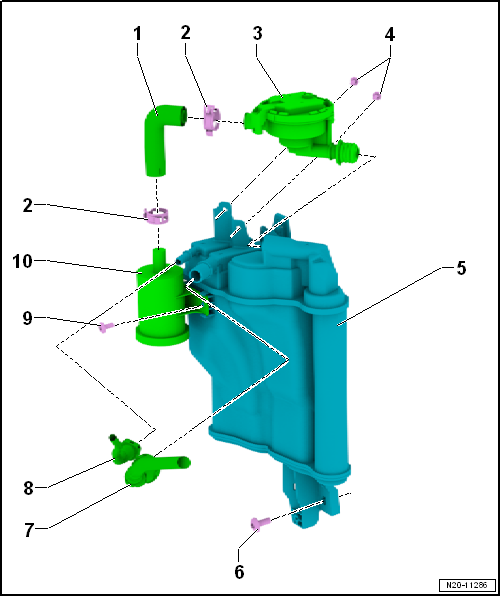

Assembly overview - activated charcoal filter system

1 -	Connecting hose

From air filter to pressure control valve

2 -	Hose clips

3 -	Pressure regulating valve

With tank pressure sensor -G400-

4 -

Bolts

2.5 Nm

5 -	Activated charcoal filter

Fitting location: In rear right wheel housing beneath wheel housing liner

Removing and installing → Chapter.

6 -

Bolt

20 Nm

7 -	Breather line

To fuel tank.

8 -	Breather line

To activated charcoal filter solenoid valve 1 -N80-

9 -

Bolt

2.5 Nm

10 -	Air filter

Connection diagram - activated charcoal filter

Note Fuel tank leak detection takes advantage of the fact that a vacuum develops naturally in the fuel system as the fuel in the tank cools. The variab ...

Removing and installing activated charcoal filter

Removing – Observe safety instructions → Chapter. – Observe rules for cleanliness ...
