Volkswagen Golf Service & Repair Manual: Removing and installing driver side interior locking button for central locking system -E308-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Controls / Removing and installing driver side interior locking button for central locking system -E308-

  Note
The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.
Removing
–  Remove exterior mirror adjuster -EX11- → Chapter.

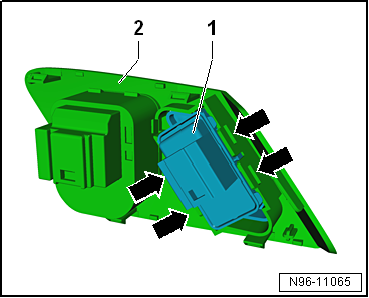

–  Release fasteners -arrows-.
–  Pull driver side interior locking button for central locking system -E308--1- out of trim for exterior mirror adjuster -EX11--2-.
Installing
Install in the reverse order of removal, observing the following:
–  Ensure that driver side interior locking button for central locking system -E308--1- engages audibly in trim for exterior mirror adjuster -EX11--2-.
–  Install exterior mirror adjuster -EX11--2- → Chapter.
–  Test functionality.
