Volkswagen Golf Service & Repair Manual: Removing and installing fuel tank flap release button -E319-

Special tools and workshop equipment required

Removal wedge -3409-
  Note
The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.


Removing and installing fuel tank flap release button -E319-

Removing

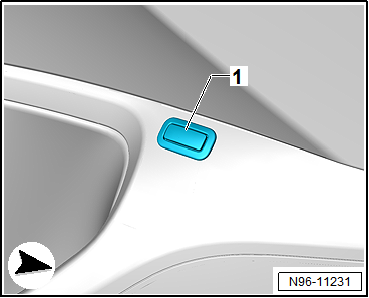

–  Unclip fuel tank flap release button -E319--1- from door trim panel using removal wedge -3409-.
–  Pull fuel tank flap release button -E319--1- from door trim panel until connector becomes accessible.
–  Release and pull off connector, then remove fuel tank flap release button -E319-.
Installing
Install in the reverse order of removal, observing the following:
–  Make sure that fuel tank flap release button -E319--1- audibly engages in door trim panel.
–  Test functionality.
