Volkswagen Golf Service & Repair Manual: Removing and installing Blind Spot Monitor control unit J1086/J1087
| – |
Disconnect electrical connector -2-. |
| – |
Unscrew nut -1- and bolts
-4- for bracket. |
|
|
|
| – |
Remove Blind Spot Monitor control unit -J1086-/-J1087-
together with bracket -1-. |
| – |

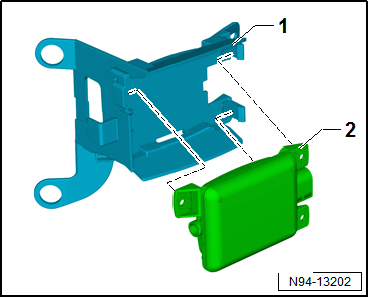

Remove Blind Spot Monitor control unit -J1086-/-J1087--2-
from bracket -1-. |
| Install in the reverse order of removal, observing the
following: |
 Note
| Normally, the Blind Spot Monitor is calibrated dynamically
(automatically). |
| Static calibration is only necessary if entries have been
recorded in the event memory. |
| → Chapter „Assembly overview – Blind Spot Monitor (Blind Spot
Detection)“ |
|
|
 |
1 -
Blind Spot Monitor warning lamp in left exterior mirror -K303-
Removing and installing
→ Chapter
2 -
Blind Spo ...
Note
The vehicle shown in the illustration may differ from the actual
vehicle.
1 -
Volkswagen logo
Laser pointer aligned to cent ...
