Volkswagen Golf Service & Repair Manual: Assembly overview - clutch engagement

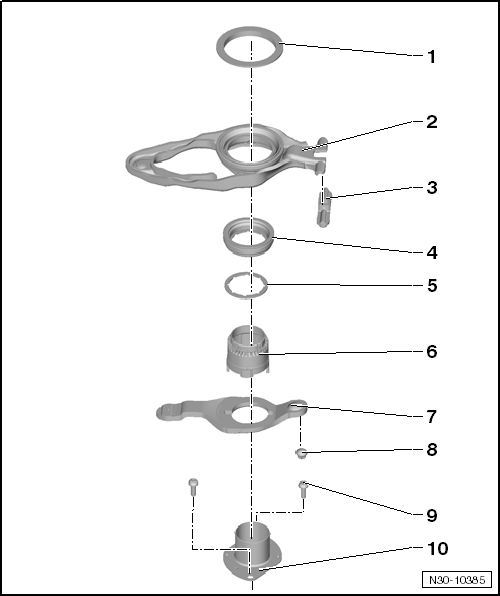

Assembly overview - clutch engagement

1 -  Shim for “K 1”
Determining thickness → Chapter.
2 -  Large engaging lever for “K 1”
With engagement bearing
Removing and installing → Chapter
3 -  Hinge mounting
For large engaging lever “K 1”
Cannot be renewed.
4 -  Small engagement bearings for “K 2”
5 -  Shim for “K 2”
Determining thickness → Chapter.
6 -  Upper section of bushing
For small engaging lever “K 2”
Is removed and installed together with small engaging lever and lower section of bushing
7 -  Small engaging lever for “K 2”
Is removed and installed together with upper and lower section of bushing
Removing and installing → Chapter
8 -  Ball pin
For small engaging lever “K 2”
Removing and installing → Anchor
9 -  Bolt
Always renew after removing.
8 Nm +90°
10 -  Lower section of bushing
For small engaging lever “K 2”
Is removed and installed together with small engaging lever and upper section of bushing
Clutch operation
...

Removing and installing clutch engagement
Removing Dual clutch removed → Chapter. –  Remove large engaging lever with small engagement bea ...
