Volkswagen Golf Service & Repair Manual: Removing and installing actuator

Removing


Removing and installing actuator

–  Removing radiator grille → Chapter

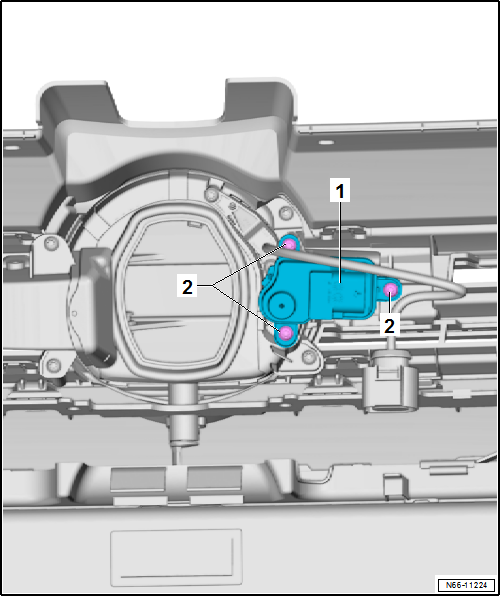

–  Remove bolts -2-.
–  Remove actuator -1-.

Installing
–  Screw in bolts -2-.
Specified torques
  Bolts on actuator → Item
