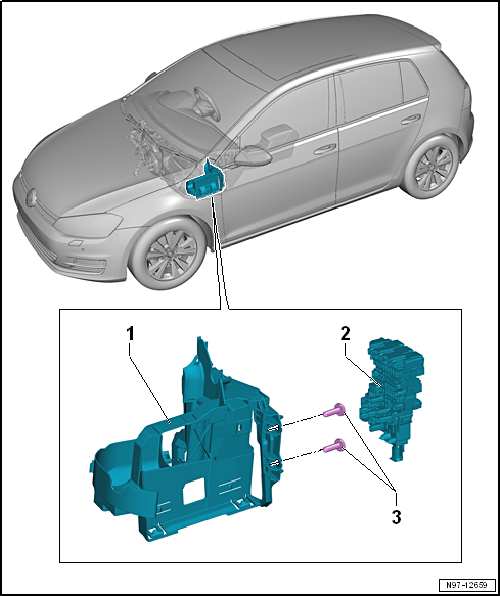

Relay carrier, fuse carrier in dash panel/A-pillar, RHD vehicles

1 -  Bracket
For onboard supply control unit -J519-
Removing and installing → Chapter
2 -  Fuse holder C -SC-
Removing and installing → Chapter
3 -  Bolt
Qty. 3
Specified torque: 3 Nm
