Overview of fitting locations – fuse box, battery (vehicles with high-voltage system)

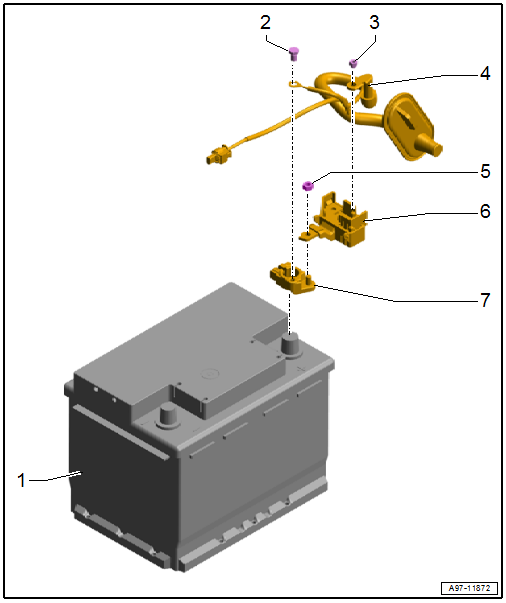

1 -  Battery -A-
Removing and installing → Chapter
Disconnecting and connecting → Chapter
2 -  Bolt
3.5 Nm
3 -  Nut
7.5 Nm
4 -  Positive cable
With wiring harness
Disconnecting and connecting → Chapter
5 -  Nut
6 Nm
6 -  Fuse holder, battery
Removing and installing → Chapter
7 -  Battery terminal clamp
For positive cable
