Volkswagen Golf Service & Repair Manual: Relay carrier, fuse carrier in dash panel/A-pillar, LHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Relay carriers, fuse holders, electronics boxes / Relay carrier, fuse carrier in dash panel/A-pillar, LHD vehicles

Relay carrier, fuse carrier in dash panel/A-pillar, LHD vehicles

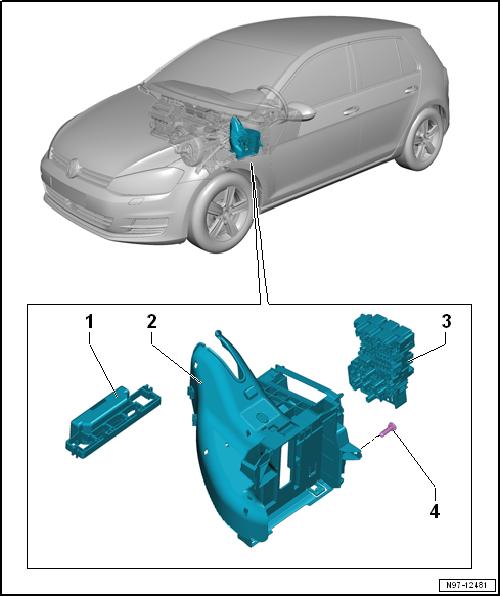

1 -  Bracket
For parking aid control unit -J446-/park assist steering control unit -J791-
Removing and installing → Chapter
2 -  Bracket
For onboard supply control unit -J519-
Removing and installing → Chapter
3 -  Fuse holder C -SC-
Removing and installing → Chapter
4 -  Bolt
Qty. 3
Specified torque: 3 Nm
Relay carriers, fuse carriers, electronics box (engine compartment)
1 -  Front cover For electronics box in engine compartment 2 -  Nut Specified torque: 9 Nm 3 -&n ...

Relay carrier, fuse carrier in dash panel/A-pillar, RHD vehicles
1 -  Bracket For onboard supply control unit -J519- Removing and installing → Chapter 2 -  Fuse hol ...
