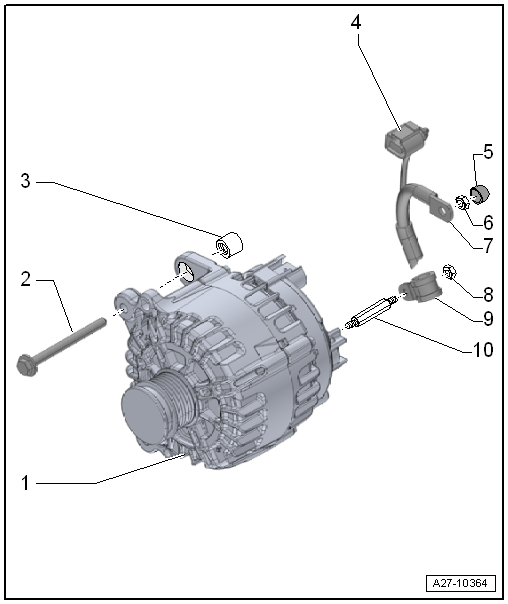

Assembly overview - alternator with sliding bushes

1 -  Alternator -C-
Removing and installing → Chapter
Checking → Chapter
Removing and installing poly V-belt pulley → Chapter
Removing and installing voltage regulator -C1- → Chapter
2 -  Bolt
Qty. 2
Specified torque: 23 Nm
3 -  Sliding bush
Qty. 2
Ensure that bushes slide freely and are not too tight (loosen, if necessary), as clamping force of a stiff bush will be insufficient even when the correct torque is applied.
4 -  Electrical connector
5 -  Cap
6 -  Nut
Specified torque: 20 Nm
7 -  Terminal 30/B+
8 -  Nut
Only on vehicles with TDI engine
Specified torque: 3.2 Nm
9 -  Clamp
Only on vehicles with TDI engine
10 -  Threaded stud
Specified torque: 3.2 Nm
