Volkswagen Golf Service & Repair Manual: Valve dimensions

  Note

Inlet and exhaust valves must not be reworked. Only lapping-in is permitted.

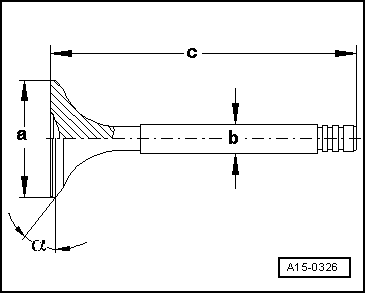

Valve dimensions

Dimension Inlet valve Exhaust valve
Diameter a mm 28.5 25.0
Diameter b mm 4.973 4.963
c mm 110.25 110.09
α ∠° 45 30
