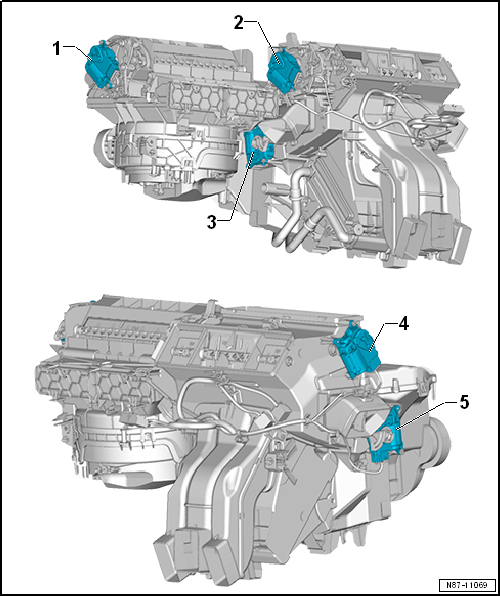

Overview of fitting locations - front control motors, Climatronic, RHD vehicles

1 -  Control motor for fresh air and air recirculation flap and air flow flap -V425-
With potentiometer for fresh air/recirculated air and air flow flap control motor -G644-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Front air distribution flap control motor -V426- with potentiometer for front air distribution flap control motor -G642-
With potentiometer for front air distribution flap control motor -G642-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Left temperature flap control motor -V158-
With potentiometer for left temperature flap control motor -G220-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
4 -  Defroster flap control motor -V107-
With potentiometer for defroster flap control motor -G135-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
5 -  Right temperature flap control motor -V159-
With potentiometer for right temperature flap control motor -G221-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
