Volkswagen Golf Service & Repair Manual: Assembly overview - D-pillar trim

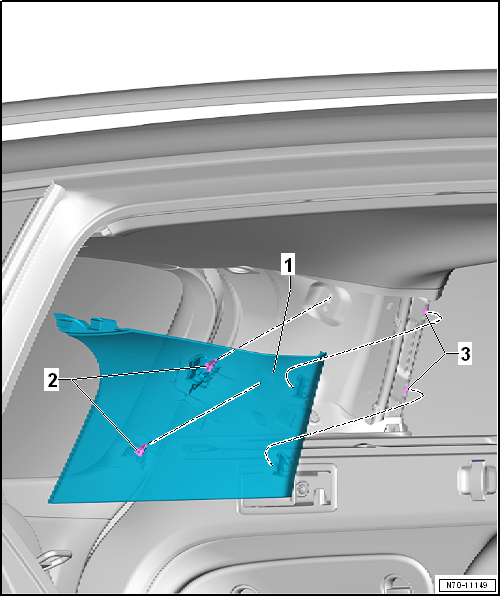

Note| The illustration shows the D-pillar trim on the left side. The right-hand side is similar (mirror image of left-hand side). |
| 1 - | D-pillar trim |
- Removing and installing → Chapter
| 2 - | Retaining clip |
- Insert into trim
- Remove any retaining clips left in body mountings using removal tool -T40280
- Renew any damaged or deformed retaining clips
| 3 - | Retaining clip |
- Insert in D-pillar
- Always renew retaining clips
Assembly overview - B-pillar trim
Note
The illustration shows the B-pillar trims on the left side.
The right-hand side is similar (mirror image of left-hand side).
...
Assembly overview - side trim panel
Note
The illustration shows the side trim panel on the left side. The
right-hand side is similar (mirror image of left-hand side).
1 -
Side trim ...
