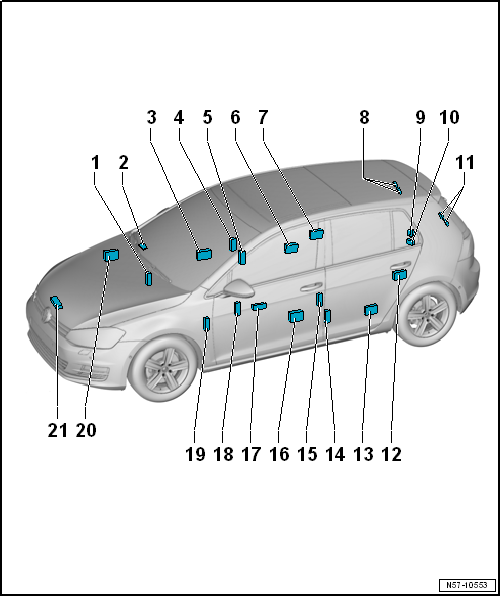

Overview of fitting locations – central locking

1 -	Coupling station

Fitting location: right A-pillar
To separate connections, release bellows at pillar

2 -	Onboard supply control unit -J519-

Location: Under dash panel on driver side
Removing → Electrical system; Rep. gr.97

3 -	Front passenger door control unit -J387-

Installed in door separated from window regulator motor.

4 -	Front right door lock

Door lock is secured to inner part of door
Electric central locking is integrated into door lock
Removing → Chapter

5 -	Coupling station

Fitting location: right B-pillar.
To separate connections, release bellows at pillar

6 -	Driver door control unit -J386-

Installed in door separated from window regulator motor

7 -	Rear right door lock

Door lock is secured to inner part of door
Electric central locking is integrated into door lock
Removing → Chapter

8 -	Coupling station, right side of rear lid

Location: behind C-pillar trim
Remove and install → General body repairs, interior; Rep. gr.70.

9 -	Release element with button

Location: Bolted to rear lid.
Removing → Chapter

10 -	Rear lid lock

Location: bolted to rear lid
Removing → Chapter

11 -	Coupling station, left side of rear lid

Location: behind C-pillar trim
Remove and install → General body repairs, interior; Rep. gr.70

12 -	Rear left door lock

Door lock is secured to inner part of door
Electric central locking is integrated into door lock
Removing → Chapter

13 -	Rear left door control unit -J388-

Installed in door separated from window regulator motor

14 -	Coupling station

Location: left B-pillar
To separate connections, release bellows at pillar.

15 -	Front left door lock

Door lock is secured to inner part of door
Electric central locking is integrated into door lock
Removing → Chapter

16 -	Driver door control unit -J386-

Installed in door separated from window regulator motor.

17 -	Central switch for window regulators

Location: installed in door panel
Remove and install central switch for window regulator → Electrical system; Rep. gr.96

18 -	Button for central closing

Location: installed in door panel
Remove and install button for central closing → Electrical system; Rep. gr.96.

19 -	Coupling station

Location: left A-pillar
To separate connections, release bellows at pillar.

20 -	Alarm horn -H12-

Removing → Electrical system; Rep. gr.96.

21 -	Bonnet contact switch -F266-

Contact switch for anti-theft alarm
Location: on bonnet lock
Removing → Chapter
