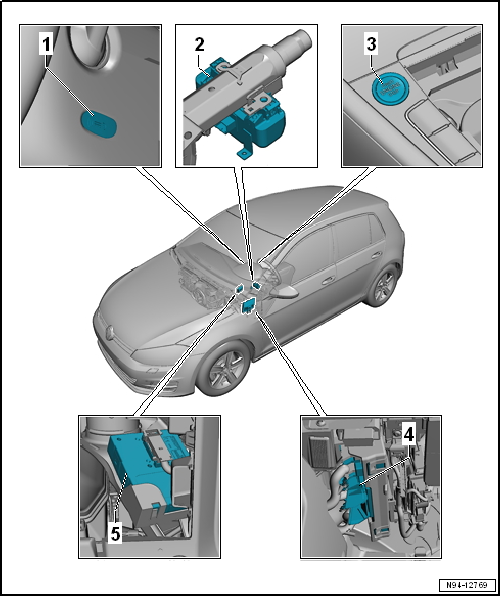

Overview of fitting locations - entry and start authorisation system, LHD vehicles

1 -  Immobiliser reader coil -D2-
Removing and installing → Chapter
2 -  Control unit for electronic steering column lock -J764-
Removing and installing → Running gear, axles, steering; Rep. gr.48.
3 -  Starter button -E378-
Removing and installing → Chapter
4 -  Onboard supply control unit -J519-
With central locking and anti-theft alarm system aerial -R47-
Assembly overview → Chapter
5 -  Interface for entry and start system -J965-
Removing and installing → Chapter
