Volkswagen Golf Service & Repair Manual: Overview of fitting locations - components not located in passenger compartment, Golf Variant LHD

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Heating / Overview of fitting locations - heating / Overview of fitting locations - components not located in passenger compartment, Golf Variant LHD

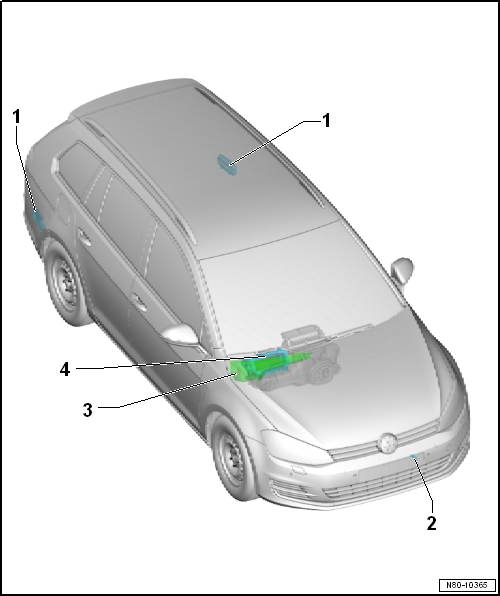

Overview of fitting locations - components not located in passenger compartment, Golf Variant LHD

1 -  Exhaust ventilation for passenger compartment
Checking → Chapter
Removing and installing → Chapter
2 -  Ambient temperature sensor -G17-
Removing and installing → Chapter
3 -  Cover for fresh air intake duct
Removing and installing → Chapter
4 -  Fresh air intake
Removing and installing → Chapter
Overview of fitting locations - components not located in passenger compartment, Golf RHD
1 -  Exhaust ventilation for passenger compartment Checking → Chapter Removing and installing → Chapter ...

Overview of fitting locations - components not located in passenger compartment, Golf Variant RHD
1 -  Exhaust ventilation for passenger compartment Checking → Chapter Removing and installing → Chapter ...
