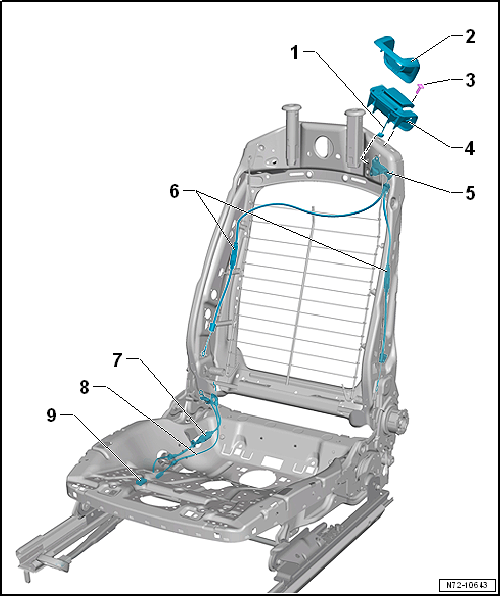

Assembly overview - backrest release mechanism and entry assistance

1 -	Connecting Bowden cable

Between backrest release mechanism and mounting bracket for backrest release mechanism
Removing and installing → Chapter

2 -	Trim for backrest release mechanism

Removing and installing → Chapter

3 -

Bolt

3.5 Nm

4 -	Backrest release mechanism

Removing and installing → Chapter

5 -	Mounting bracket for backrest release mechanism

Riveted to backrest frame
Removing and installing → Chapter

6 -	Bowden cable for backrest release mechanism

With Bowden cable adjuster on each side
Removing and installing → Chapter
Adjusting → Chapter

7 -	Bowden cable A for entry assistance

With one Bowden cable adjuster
Removing and installing → Chapter
Adjusting → Chapter

8 -	Bowden cable B for entry assistance

Removing and installing → Chapter

9 -	Memory block

Removing and installing → Chapter
