Volkswagen Golf Service & Repair Manual: Fixing position of subframe, multi-link suspension, four-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Rear suspension, drive shaft / Subframe / Fixing position of subframe, multi-link suspension, four-wheel drive

Special tools and workshop equipment required

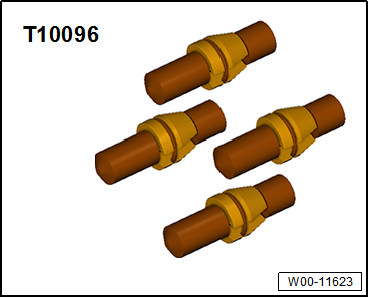

Locating pins -T10096-


Fixing position of subframe, multi-link suspension, four-wheel drive

Engine and gearbox jack -V.A.G 1383 A-
Installing locating pins -T10096-


Fixing position of subframe, multi-link suspension, four-wheel drive

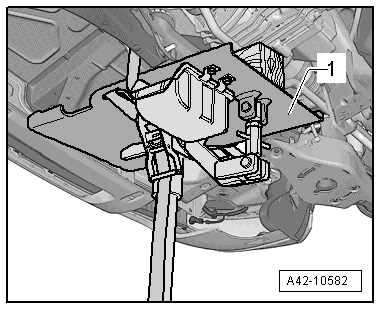

–  Position engine and gearbox jack -V.A.G 1383 A- with universal gearbox mounting -V.A.G 1359/2--1- under subframe and secure with tensioning strap.


Fixing position of subframe, multi-link suspension, four-wheel drive

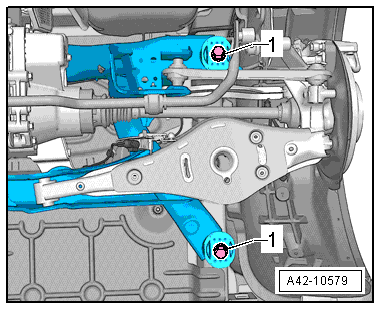

To fix position of subframe, locating pins -T10486- must be screwed in successively at positions -1- on both sides of vehicle.
–  Unscrew one bolt -1- on each side.
  Note
Only the left side of vehicle is shown to improve clarity.


Fixing position of subframe, multi-link suspension, four-wheel drive

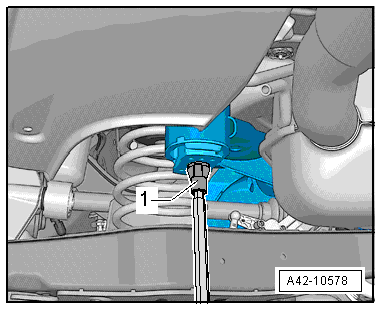

–  Screw in locating pins -T10096--1-.
  Note
The locating pins -T10096- may be tightened only to a maximum of 20 Nm; otherwise the threads of the locating pins may be damaged.
–  Replace securing bolts on subframe one after the other on both sides with a locating pin from the locating pin set -T10486--1- and tighten to 20 Nm.
The position of the subframe is now fixed.
