Volkswagen Golf Owners Manual: Drink holders in the rear centre armrest

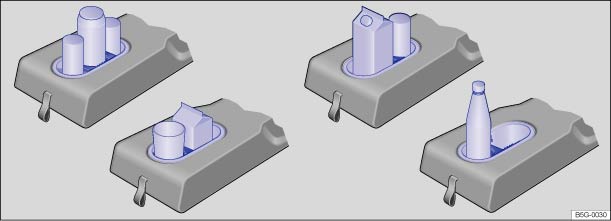

Fig. 120 Drink holder in rear centre armrest: examples of ways to adjust drink holder for different purposes
Fig. 121 Drink holders in the rear centre armrest
First read and observe the introductory information
and safety warnings - To open, fold the centre armrest down.
- To close, fold the centre armrest up.
- To adjust the drink holder to the size of the cup, pull the inserts or ② upwards and reposition them to fit the size of the cup . The inserts can be placed in different positions.
Some drink holder designs allow you to adjust to the size of the cup by turning the inserts at a 180°angle.
Drink
holders in the front centre console
Fig. 118 In the lower part of the centre
console: opening the drink holder
Fig. 119 In the lower part of the centre
console: closing the front drink holder
First read and observe the introduct ...
Drink holder in the rear side trim
Fig. 122 Drink holder in the rear side
trim
First read and observe the introductory information
and safety warnings In 2-door vehicles, the rear side trim may contain open
drink holders . ...
