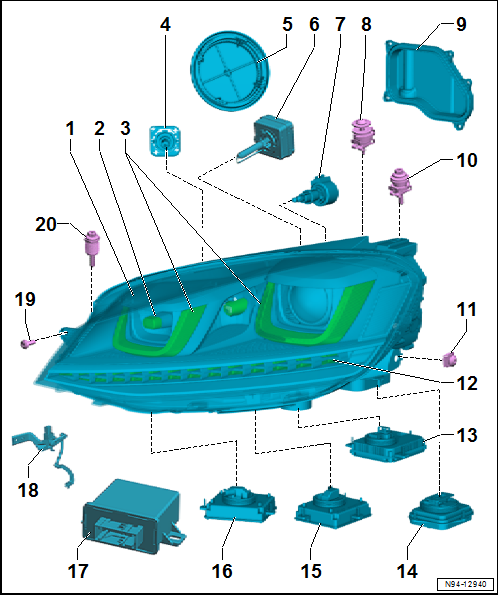

Assembly overview – gas discharge headlight with dynamic high beam control and LED daytime running light, »R«

1 -

Headlight

Front left headlight -MX1-

Front right headlight -MX2-

Removing and installing → Chapter

2 -	Side light bulb

Left side light bulb -M1-

Right side light bulb -M3-

LED design, cannot be replaced individually

3 -	Left LED module for daytime running light and side light

Left LED module for daytime running light and side light -L176-

Right LED module for daytime running light and side light -L177-

Qty. 2 per headlight

Cannot be replaced as single part

4 -	Cornering light bulb

Left cornering light bulb -L148-

Right cornering light bulb -L149-

Removing and installing → Chapter

5 -	Housing cover

6 -	Gas discharge bulb

With integrated starter unit

Left gas discharge (xenon) bulb -L13-

Right gas discharge (xenon) bulb -L14-

Removing and installing → Chapter

7 -	Headlight range control motor

Left headlight range control motor -V48-

Right headlight range control motor -V49-

Removing and installing → Chapter

8 -

Bolt

With compensation element

Specified torque: 4 Nm

9 -	Housing cover

Bolted to headlight housing

Qty. 5

Specified torque: 1.5 Nm

10 -

Bolt

With compensation element

Specified torque: 8 Nm

11 -

Bolt

Specified torque: 4 Nm

12 -	Front turn signal bulb

Front left turn signal bulb -M5-

Front right turn signal bulb -M7-

LED design, cannot be replaced individually

13 -	Gas discharge bulb control unit

Left gas discharge bulb control unit -J343-

Right gas discharge bulb control unit -J344-

Removing and installing → Chapter

Specified torque: 1.7 Nm

14 -	Output module for headlight

Output module for left headlight -J667-

Output module for right headlight -J668-

Removing and installing → Chapter

Specified torque: 1.7 Nm

15 -	Control unit for daytime running light and side light

Control unit for left daytime running light and side light -J860-

Control unit for right daytime running light and side light -J861-

Removing and installing → Chapter

Specified torque: 1.7 Nm

16 -	Output module 2 for headlights

Output module 2 for left headlight -J892-

Output module 2 for right headlight -J893-

Removing and installing → Chapter

Specified torque: 1.7 Nm

17 -	Cornering light and headlight range control unit -J745-

Removing and installing → Chapter

18 -	Vehicle level sender

Removing and installing → Running gear, axles, steering; Rep. gr.43.

19 -

Stop bolt

For longitudinal adjustment of headlight

20 -

Bolt

With banjo bolt

For height adjustment of headlight

Specified torque: 4 Nm
