Volkswagen Golf Service & Repair Manual: Removing and installing engine speed sender -G28-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Ignition system, glow plug system / Removing and installing ignition coils with output stage / Removing and installing engine speed sender -G28-

Special tools and workshop equipment required

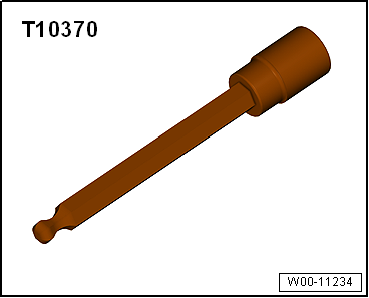

Socket AF 4 mm -T10370-

Removing

–	Remove noise insulation → General body repairs, exterior; Rep. gr.66.

Removing and installing engine speed sender -G28-

–	Unscrew bolt -arrow- and push charge air cooling pump -V188- to one side.

Removing and installing engine speed sender -G28-

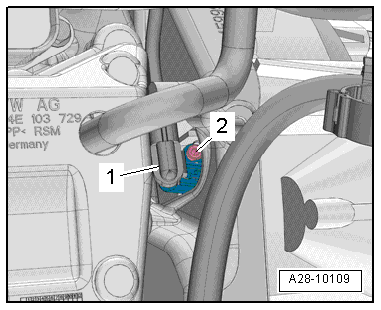

–	Disconnect electrical connector -1-.

–	Unscrew bolt -2- and remove engine speed sender -G28-.

Installing

Note

Carefully insert engine speed sender -G28- in bore!

This will prevent the engine speed sender -G28- from falling between engine and gearbox.

–	Install in reverse order.

–	Install noise insulation → General body repairs, exterior; Rep. gr.66.

Specified torques

→ Chapter „Assembly overview - ignition system“

→ Chapter „Assembly overview - electric coolant pump“
