Volkswagen Golf Service & Repair Manual: Checking radial and lateral runout on wheels and tyres with tyre gauge

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Wheels, tyres, axle align / Vibration due to wheels/tyres - causes and rectification / Checking radial and lateral runout on wheels and tyres with tyre gauge

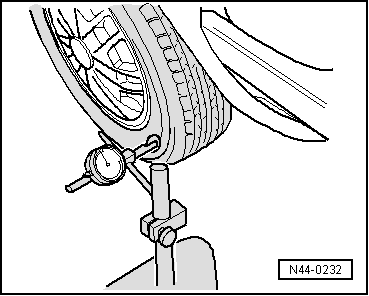

Checking lateral run-out

–	Preload tyre gauge approx. 2 mm.

–	Fit tyre gauge to side wall of tyre.

–	Turn wheel slowly.

–	Make a note of the smallest and largest deflection of the indicator needle.

Note

If the difference is greater than 1.3 mm, the lateral run-out is too great.

In this case, you can reduce lateral run-out by match mounting the tyre → Chapter.

Extreme values on the tyre gauge due to small irregularities in the rubber may be disregarded.

Checking radial run-out

–	Preload tyre gauge approx. 2 mm.

Checking radial and lateral runout on wheels and tyres with tyre gauge

–	Fit tyre gauge to running surface of tyre.

–	Turn wheel slowly.

–	Make a note of the smallest and largest deflection of the indicator needle.

Note

If the difference is greater than 1 mm, the radial run-out is too great.

In this case, you can reduce radial run-out by match mounting the tyre → Chapter.

Checking radial and lateral runout on wheels and tyres with tyre gauge

Checking radial and lateral runout of wheels and tyres, tolerances

Radial and lateral run-out occur when the wheel and tyre do not run absolutely true. For technical reasons, 100% true running is not possible. ...

Checking radial and lateral run-out on wheel rim

– Attach rim to wheel balancing machine. – Use the centring system for wheel balancing machines -VAS 5271-. ...
