Volkswagen Golf Service & Repair Manual: Assembly overview - gas discharge headlight with dynamic high beam control and LED daytime running light

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Headlight / Assembly overview - gas discharge headlight with dynamic high beam control and LED daytime running light

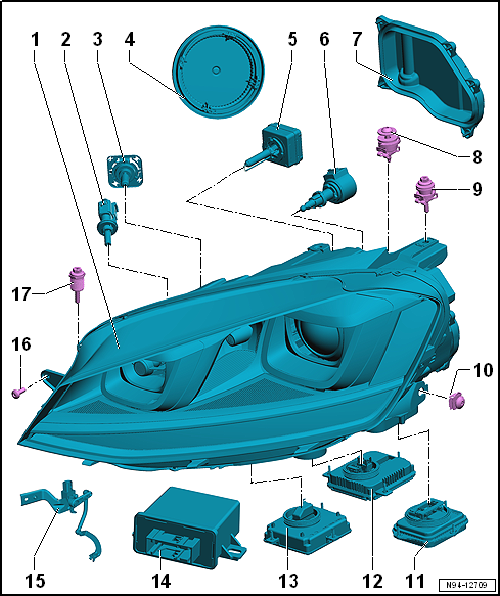

Assembly overview - gas discharge headlight with dynamic high beam control and LED daytime running light

1 -

Headlight

Removing and installing → Chapter

2 -	Front turn signal bulb

Front left turn signal bulb -M5-

Front right turn signal bulb -M7-

Removing and installing → Chapter

3 -	Cornering light bulb

Left cornering light bulb -L148-

Right cornering light bulb -L149-

Removing and installing → Chapter

4 -	Housing cover

5 -	Gas discharge bulb

With integrated starter unit

Left gas discharge (xenon) bulb -L13-

Right gas discharge (xenon) bulb -L14-

Removing and installing → Chapter

6 -	Headlight range control motor

Left headlight range control motor -V48-

Right headlight range control motor -V49-

Removing and installing → Chapter

7 -	Housing cover

With bolts

Qty. 5

Specified torque: 1.5 Nm

8 -

Bolt

With compensation element

Specified torque: 4 Nm

9 -

Bolt

With compensation element

Specified torque: 8 Nm

10 -

Bolt

Specified torque: 4 Nm

11 -	Output module for headlight

Output module for left headlight -J667-

Output module for right headlight -J668-

Removing and installing → Chapter

Specified torque: 1.7 Nm

12 -	Gas discharge bulb control unit

Left gas discharge bulb control unit -J343-

Right gas discharge bulb control unit -J344-

Removing and installing → Chapter

Specified torque: 1.7 Nm

13 -	Control unit for daytime running light and side light

Control unit for left daytime running light and side light -J860-

Control unit for right daytime running light and side light -J861-

Removing and installing → Chapter

Specified torque: 1.7 Nm

14 -	Cornering light and headlight range control unit -J745-

Removing and installing → Chapter

15 -	Vehicle level sender

Removing and installing → Running gear, axles, steering; Rep. gr.43.

16 -

Stop bolt

For longitudinal adjustment of headlight

17 -

Bolt

With banjo bolt

For height adjustment of headlight

Specified torque: 4 Nm

Assembly overview - gas discharge headlight with cornering light and LED daytime running light

1 - Headlight Removing and installing → Chapter 2 - Front turn signal bulb Front left turn signal ...

Assembly overview – gas discharge headlight with dynamic high beam control and LED daytime running light, »R«

1 - Headlight Front left headlight -MX1- Front right headlight -MX2- Removing and installing → Chapter ...
