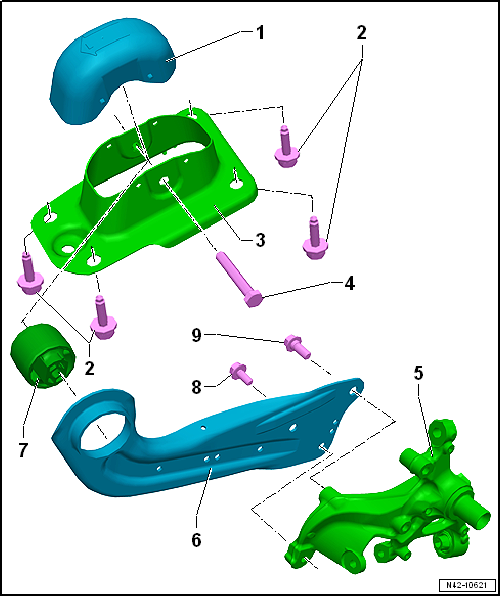

Assembly overview - trailing arm, except for e-Golf

1 -

Cover

2 -

Bolt

Renew after removing

50 Nm +45°

3 -	Mounting bracket

4 -

Bolt

Renew after removing

90 Nm +90°

5 -	Wheel bearing housing

Different versions possible. Refer to → Electronic Parts Catalogue “ETKA”

6 -	Trailing arm

Removing and installing → Chapter

7 -	Bonded rubber bush

Note correct installation position

Renewing → Chapter.

8 -

Bolt

M12 x 1.5

Renew after removing

70 Nm +90°

9 -

Bolt

M14 x 1.5

Renew after removing

70 Nm +90°
