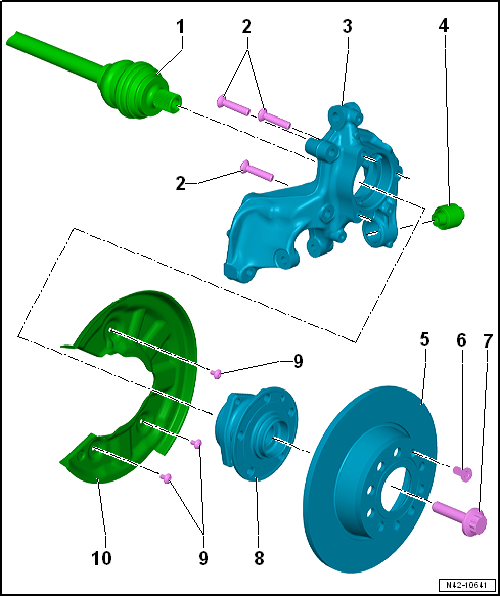

Assembly overview - suspension, multi-link suspension, four-wheel drive

1 -	Drive shaft

2 -

Bolt

Renew after removing

70 Nm +90°

3 -	Wheel bearing housing

Removing and installing → Chapter

4 -	Bonded rubber bush

Renewing → Chapter.

5 -	Brake disc

Removing and installing → Brake system; Rep. gr.46

6 -

Bolt

Specified torque → Brake system; Rep. gr.46

7 -

Bolt

Loosening and tightening → Chapter

Renew after removing

Before fitting, clean threads in stub axle using a thread tap.

200 Nm +180°

8 -	Wheel bearing unit

Removing and installing → Chapter

The wheel bearing and wheel hub are assembled in one housing.

This wheel bearing unit is maintenance-free and does not require adjustment. Adjustments and repairs are not possible!

9 -

Bolt

Specified torque → Brake system; Rep. gr.46

10 -	Heat shield

Removing and installing → Brake system; Rep. gr.46

Assembly overview - suspension, multi-link suspension, front-wheel drive

1 - Wheel bearing housing Removing and installing → Chapter 2 - Bonded rubber bush Renewing & ...

Assembly overview - trailing arm, except for e-Golf

1 - Cover 2 - Bolt Renew after removing 50 Nm +45° 3 - Mounting bracket ...
