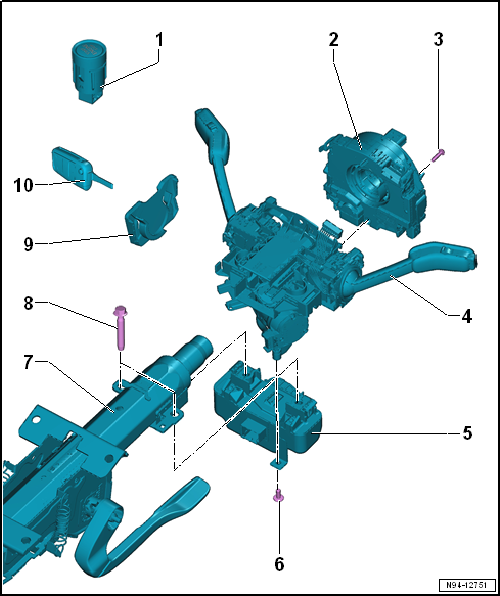

Assembly overview - steering column switch module, with electronic ignition lock

1 -	Starter button -E378-

Overview of fitting locations → Chapter

2 -	Steering column electronics control unit -J527-

With airbag coil connector and return ring with slip ring -F138-

Removing and installing → Chapter

Caution

Risk of damage to the return ring.

When removed, the return ring with slip ring must not be turned.

3 -

Bolt

Qty. 3

Specified torque: 1.1 Nm

4 -

Mounting

With turn signal switch -E2-, intermittent wiper switch -E22-

Vehicles with cruise control system: with cruise control system switch -E45-.

Removing and installing → Chapter

5 -	Control unit for electronic steering column lock -J764-

Removing and installing → Running gear, axles, steering; Rep. gr.48.

6 -

Bolt

Specified torque: 1.1 Nm

7 -	Steering column

8 -

Bolt

Qty. 2

For steering lock housing (shear bolt)

9 -	Immobiliser reader coil -D2-

Removing and installing → Chapter

10 -	Ignition key
