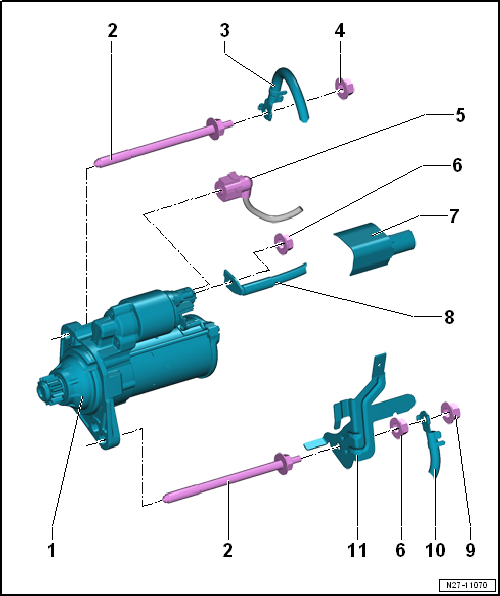

Assembly overview - starter (vehicles with manual gearbox)

1 -	Starter -B-

Removing and installing → Chapter

2 -	Double stud

Specified torque: 80 Nm

3 -	Earth cable

Depending on vehicle equipment

4 -

Nut

Depending on vehicle equipment

Specified torque: 20 Nm

5 -	Electrical connector

6 -

Nut

Specified torque: 20 Nm

7 -

Cap

8 -	Terminal 30/B+

9 -

Nut

Depending on vehicle equipment

Specified torque: 20 Nm

10 -	Earth cable

Depending on vehicle equipment

11 -

Bracket

For wiring harness
