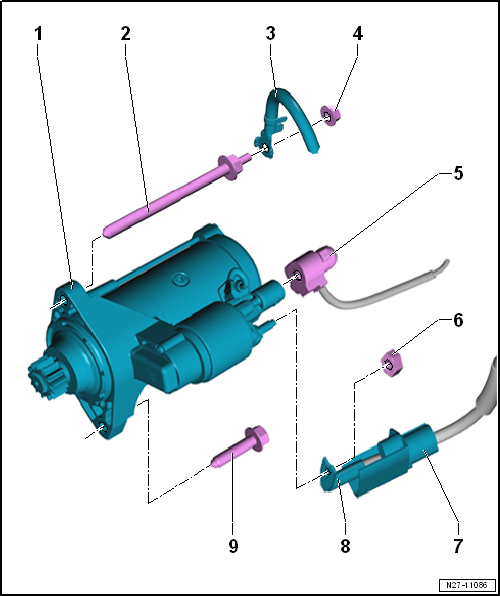

Assembly overview - starter, vehicles with dual clutch gearbox (DQ200–7F)

1 -  Starter -B-
Removing and installing → Chapter
2 -  Double stud
Specified torque: 80 Nm
3 -  Earth cable
Depending on vehicle equipment
4 -  Nut
Depending on vehicle equipment
Specified torque: 20 Nm
5 -  Electrical connector
6 -  Nut
Specified torque: 20 Nm
7 -  Cap
8 -  Terminal 30/B+
9 -  Bolt
Specified torque: 80 Nm
Assembly overview - starter (vehicles with manual gearbox)
1 -  Starter -B- Removing and installing → Chapter 2 -  Double stud Specified torque: 80 Nm ...

Assembly overview - starter, vehicles with dual clutch gearbox (DQ250-6F)
1 -  Starter -B- Removing and installing → Chapter 2 -  Bolt Specified torque: 40 Nm ...
