Volkswagen Golf Service & Repair Manual: Assembly overview - side trim panel

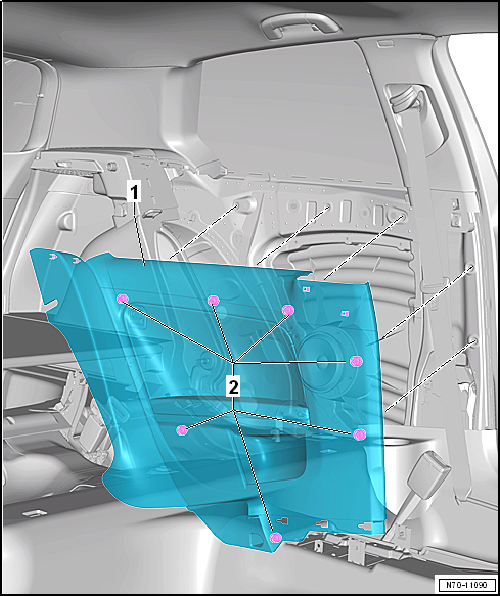

Note| The illustration shows the side trim panel on the left side. The right-hand side is similar (mirror image of left-hand side). |
| 1 - | Side trim panel |
- Removing and installing → Chapter
| 2 - | Clip |
- Insert into trim
- Renew any damaged or deformed clips
Assembly overview - D-pillar trim
Note
The illustration shows the D-pillar trim on the left side. The
right-hand side is similar (mirror image of left-hand side).
1 -
D-pillar tri ...
Assembly overview - wheel housing trim, saloon
Note
The illustration shows the wheel housing trim on the left side.
The right-hand side is similar (mirror image of left-hand side).
I: Vehicles without side paddin ...
