Volkswagen Golf Service & Repair Manual: Removing and installing interface for entry and start authorisation system -J965-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Entry and start authorisation system / Removing and installing interface for entry and start authorisation system -J965-

  Note
When renewing the control unit, select Renew function for the respective control unit in Guided fault finding or Guided functions mode → Vehicle diagnostic tester.
The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.
Removing
–  Remove footwell cover on driver side → General body repairs, interior; Rep. gr.68.
–  Remove knee airbag with igniter → General body repairs, interior; Rep. gr.69.

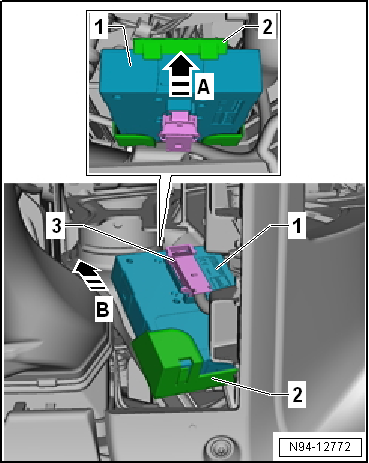

–  Press bracket -2- of interface for entry and start authorisation system -J965--1- at top in direction of arrow -A-.
–  Remove interface for entry and start authorisation system -J965--1- from bracket -2- in direction of arrow -B-.
–  Disconnect electrical connector -3-.


Removing and installing interface for entry and start authorisation system -J965-

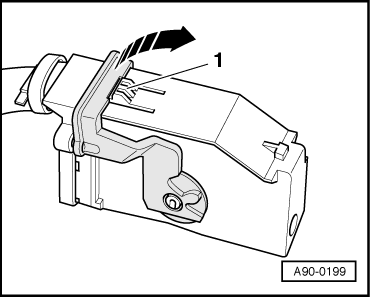

–  Press locking detent -1- to disconnect connector.
–  Swing retainer in -direction of arrow- and pull off connector.


Removing and installing interface for entry and start authorisation system -J965-

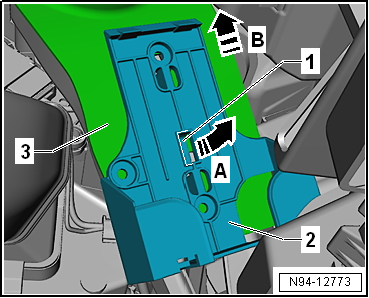

–  Lever out catch -1- in -direction of arrow A-, using a narrow screwdriver if necessary.
–  Remove bracket -2- from support -3- in direction of arrow -B-.
Installing
Install in the reverse order of removal, observing the following:
–  Ensure that bracket for interface for entry and start system -J965- engages audibly.
–  Ensure that interface for entry and start system -J965- engages audibly in bracket.


Removing and installing interface for entry and start authorisation system -J965-

Removing and installing door exterior handle contact sensor -G415-/-G416-

  Note
The driver door exterior handle contact sensor -G415- or front passenger door exterior handle contact sensor -G416- is integrated in the respective exterior door handle and cannot be renewed individually if defective.
–  Removing and installing door handle → General body repairs, exterior; Rep. gr.57.

Overview of fitting locations - rear keyless entry system, RHD vehicles
