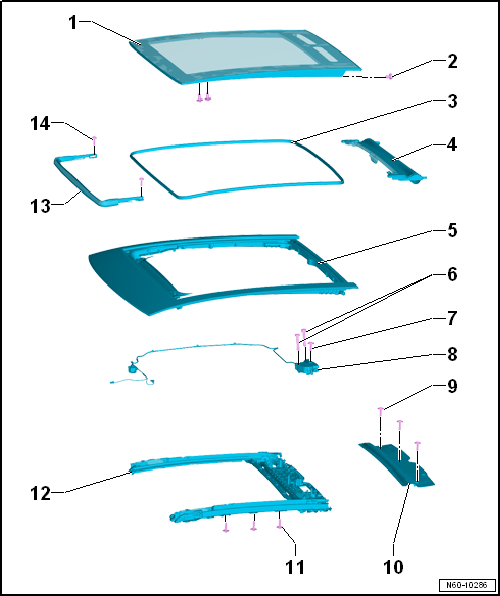

Assembly overview - sliding sunroof

1 -	Glass panel for panorama tilting sunroof (single pane safety glass)

Removing glass panel → Chapter
If drive defective, remove glass panel → Chapter
Adjusting glass panel → Chapter

2 -

Bolt

Bolts are microencapsulated and must always be renewed after loosening
Qty. 6
5.5 Nm

3 -	Seal of sliding sunroof frame

Removing and installing → Chapter.

4 -	Sunroof roller blind

Removing and installing → Chapter

5 -	Sliding sunroof frame

Removing and installing sliding sunroof frame → Chapter
Guide channels are to be greased, if required, with special grease G 060 751 A2 only otherwise correct operation cannot be guaranteed.

6 -

Bolt

For sliding sunroof motor
Qty. 3
4 Nm

7 -

Bolt

For sliding sunroof motor
Qty. 1
4 Nm

8 -	Sliding sunroof adjustment control unit -J245-

Removing and installing control unit → Chapter
Programming control unit → Chapter

9 -

Bolt

For the cover
Qty. 5
2.5 Nm

10 -

Cover

11 -

Bolt

Bolts are microencapsulated and must always be renewed after loosening
Qty. 13
3 Nm

12 -	Guide plate

With tilting mechanism and cables
Forms one component in conjunction with securing bracket of lift sun blind and control unit
Removing and installing → Chapter

13 -	Wind deflector

Removing and installing → Chapter.

14 -

Bolt

For wind deflector
Qty. 2
2 Nm
