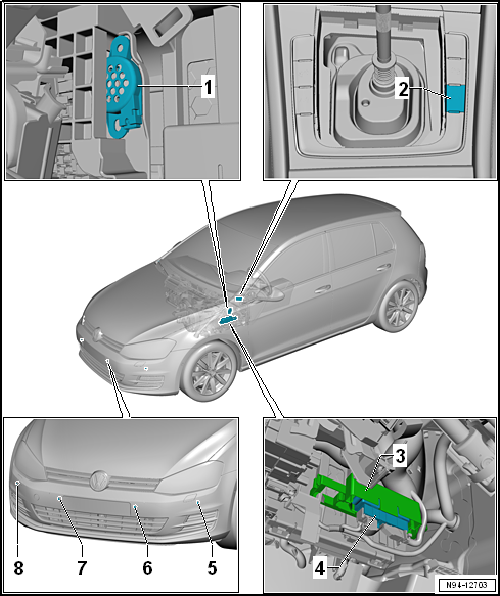

Assembly overview - front parking aid, LHD vehicles

1 -  Front parking aid warning buzzer -H22-
Only for 8-channel parking aid
Removing and installing → Chapter
2 -  Parking aid button -E266-
Removing and installing → Chapter
3 -  Bracket
For parking aid control unit -J446-
Removing and installing → Chapter
4 -  Parking aid control unit -J446-
Removing and installing → Chapter
5 -  Front left parking aid sender -G255-
Removing and installing → Chapter
6 -  Front centre left parking aid sender -G254-
Removing and installing → Chapter
7 -  Front centre right parking aid sender -G253-
Removing and installing → Chapter
8 -  Front right parking aid sender -G252-
Removing and installing → Chapter
Parking aid
...

Assembly overview - rear parking aid, LHD vehicles
1 -  Electrical connector 2 -  Spreader clip 3 -  Rear parking aid warning buzzer -H15- Removing and inst ...
