Note

For assembly work, secure engine to engine and gearbox support → Chapter.

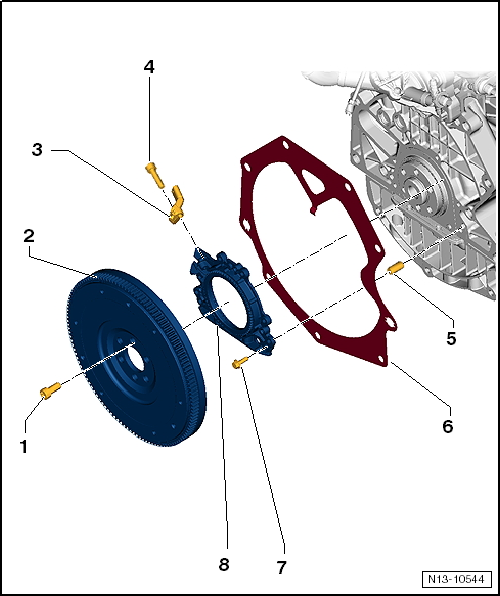

Assembly overview - cylinder block, gearbox end

1 -

Bolt

Renew

60 Nm + 90°

2 -

Flywheel

Removing and installing → Chapter

Fitting possible in one position only.

3 -	Engine speed sender -G28-

Removing and installing → Chapter

4 -

Bolt

Specified torque → Chapter

5 -

Dowel pin

Qty. 2

6 -	Intermediate plate

Do not damage or bend when assembling.

Installing → Fig..

7 -

Bolt

Specified torque and tightening sequence → Fig.

8 -	Sealing flange with sender wheel and oil seal

Renew sealing flange complete with oil seal and sender wheel only.

Removing and installing → Chapter

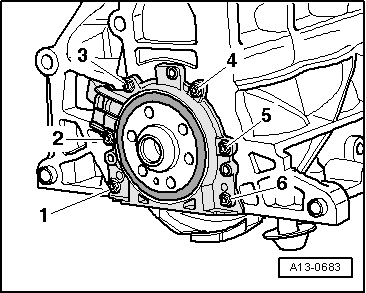

Sealing flange on gearbox side - specified torque and tightening sequence

–	Tighten bolts in stages as follows:

Assembly overview - cylinder block, gearbox end

Stage	Bolts	Specified torque
1	-1 … 6-	Screw in to contact by hand
2	-1 … 6-	in diagonal sequence and in stages; final torque 10 Nm

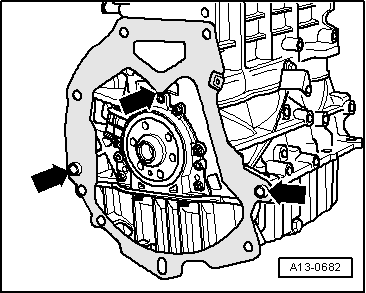

Install intermediate plate.

–	Attach intermediate plate to sealing flange -arrow at top- and push onto dowel sleeves -arrows at bottom-.
