Assembly overview - control units, RHD vehicles

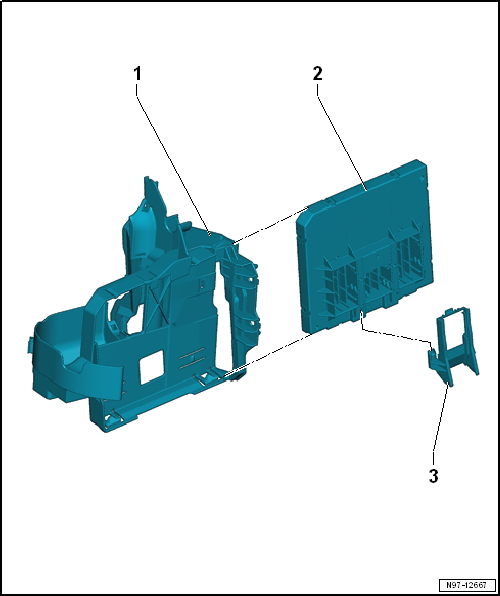

1 -  Bracket
For onboard supply control unit -J519-
Removing and installing → Chapter
2 -  Onboard supply control unit -J519-
Removing and installing → Chapter
3 -  Guide
For electrical connector (centre)
Depending on vehicle equipment
Assembly overview - control units, LHD vehicles
1 -  Control unit Versions with parking aid: Parking aid control unit -J446- Assembly overview → Chapter ...

Assembly overview - data bus diagnostic interface
1 -  Electrical connector For data bus diagnostic interface -J533- 2 -  Data bus diagnostic interface -J533- Remov ...
