Assembly overview - control units, LHD vehicles

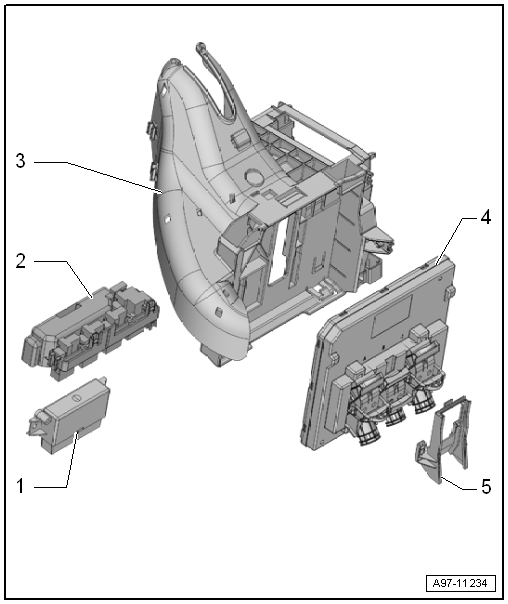

1 -	Control unit

Versions with parking aid:

Parking aid control unit -J446-

Assembly overview → Chapter

Versions with park assist steering:

Park assist steering control unit -J791-

Assembly overview → Chapter

2 -

Bracket

For parking aid control unit -J446-/park assist steering control unit -J791-

Removing and installing → Chapter

3 -

Bracket

For onboard supply control unit -J519-

Removing and installing → Chapter

4 -	Onboard supply control unit -J519-

Removing and installing → Chapter

5 -

Guide

For electrical connector (centre)

Overview of fitting locations – control units, rear
